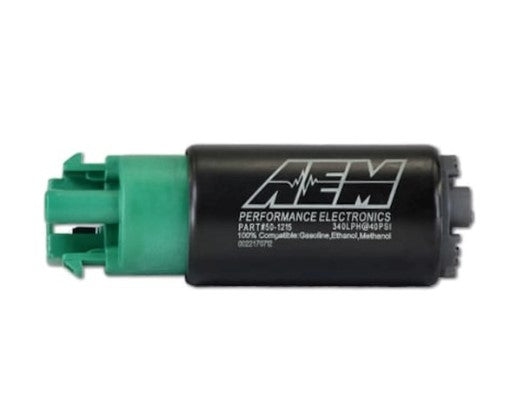

AEM 340LPH 65mm Fuel Pump Kit w/ Mounting Hooks - Ethanol Compatible

Car Make/Model: Universal


TECHNICAL SPECS:

Weight: 12.5oz (354grams)

Outside Diameter: 39mm OD

External Materials: Black plated steel with laser etching

Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline

Outlet Fitting: 8 mm hose clamp. Offset

PRV Activation: 80 PSI

Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:

Connector Terminal: 6 mm Spade (pos/neg)

Min Voltage Input: 6 volts

Max Voltage Input: 18 volts

Current Draw (40 psi): 12 amps (13.5v)

Current Draw (80 psi): 15 amps (13.5v)

Fuse: 20 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
Features:
Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
Designed for high output naturally aspirated and forced induction EFI vehicles
Tested to flow 340 lph @ 40 PSI
39mm diameter fits most applications
Offset inlet design eases installation
Each pump individually tested

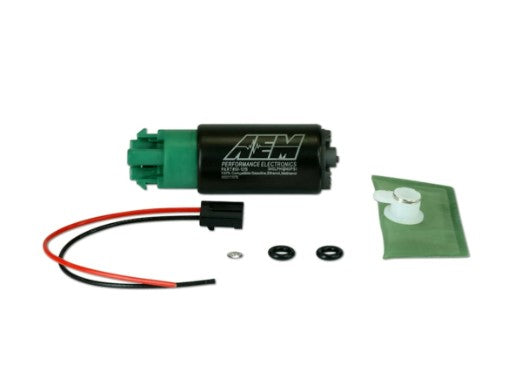

Kit includes fuel pump, rubber sleeve and end caps, pre filter and flying lead
In tank design
